Product Code	T5092 S/P Pan

Brand	Hamilton Lennox Bathroom
Model	T5092
Series	BTW Bella

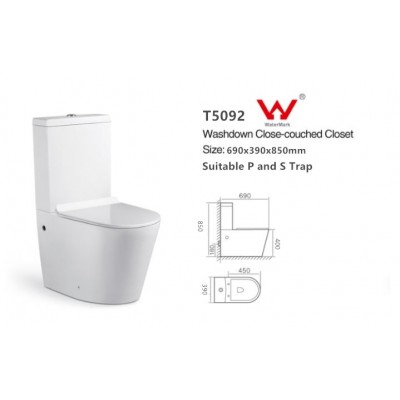

Size	D690mm x W390mm x H850mm
Material	Full Ceramic
Colour	White

Feature	Close-fitting design
	Back-to-wall
	Soft close seat
	Hygiene Glaze surface
	Water saving

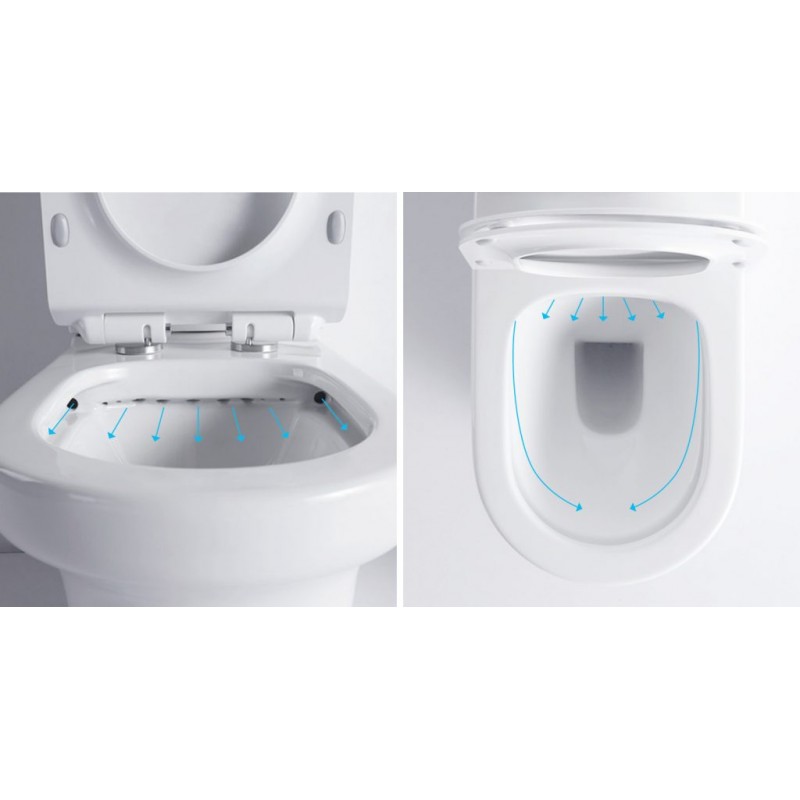

	Rimless Flush system

Water Inlet Position	Left, right, and top
WATERMARK Licence No	WMK26220
Water Consumption:	WELS 4 Star
	4.5L/Full, 3L/Half Dual Flush System

Installation:	P-Trap: 180mm Offset — 3 Star
	S-Trap: 110-150mm or 220-250mm Offset — 3 Star

Warranty	2 Years Warranty for general use

Please note: Plumbing and Tapware are EXCLUDED Installation and Testing The installation of this unit must be in accordance with industry standard practices, codes and guidelines. A licensed/registered industry professional must perform all plumbing /electrical works. Products should be pre-inspected on opening and rigorously tested / inspected for compliant performance and appearance immediately upon installation. Specifications/measurements may change. Positions, measurements in the installation guides should in all situations be checked, re measured before cutting, drilling or other fitting All products sold meet NZ Building Code B2 Guarantees and Durability requirements plus all relevant Plumbing and ASNZS Standards.
